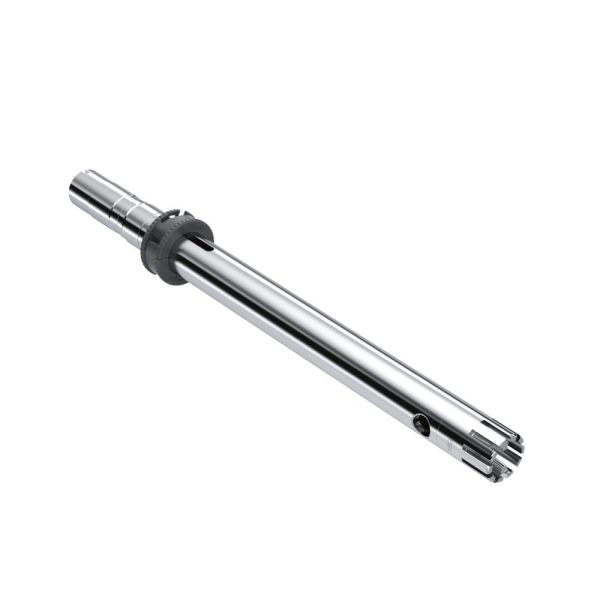

Dispersing tool for for T 25 easy clean digital/control, S 25 EC - C - 18 G

The dispersing tool S 25 EC - C - 18 G is suitable for general applications involving high speed and high shear mixing, crushing in liquid, emulsification, particle size reduction in solution and vigorous dissolving of miscible and immiscible solids and liquids in a liquid medium.

As the name "easy clean" implies, the dispersing tools are particularly easy to clean: by simply turning and lowering the clamp, the shaft and rotor can be extended from the shaft until the whole rotor comes out of the stator. Then the shaft tube of the tool can be completely rinsed from inside.

Note: S 25 EC - C - 18 G is only compatible with the dispersers T 25 easy clean digital and control. The temperature sensing function of the T tools can only be activated when used in combination with the T 25 easy clean control.

Technical data:

• Volume range (H2O) [l]: 0.01 - 1.5
• Stator diameter [mm]: 18
• Rotor diameter [mm]: 12.7
• Gap between rotor and stator [mm]: 0.3
• allowable Speed max. [rpm]: 25000
• Circumferential speed max. [m/s]: 16.6
• Immersion depth [mm]: 35 - 150
• Shaft length [mm]: 191
• Material in contact with medium: AISI 316L, ceramic
• pH range: 2 - 13
• Suitable for solvents: yes
• Suitable for abrasive substances: yes
• Working temperature max. [°C]: 180
• Sterilization methods: all methods
• Ultimate fineness, suspensions [µm]: 10 - 50
• Ultimate fineness, emulsions [µm]: 1 - 10
• Weight [kg]: 0.4
