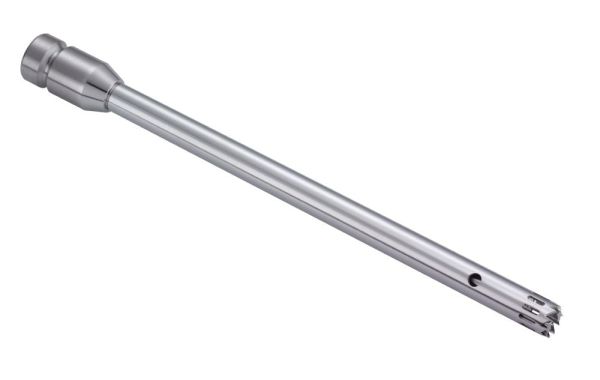

Dispersing tool T 10 basic/T10 standard, S 10 N - 10 G - ST

Suitable for dispersing instrument T 10 basic and T 10 standard. ST tools are recommended for use with tissue and other fibrous materials.

• Working range: 1 - 100 mL
• Stator diameter: 10 mm
• Immersion depth: 22 - 100 mm
• Materials in contact with medium: PTFE, AISI 316L
• Suitable for solvents
• Max. temperature: 180 °C
• Sterilization methods: all methods

Technical data:

• Volume range (H2O) [l]: 0.001 - 0.1
• Stator diameter [mm]: 10
• Rotor diameter [mm]: 7.5
• Gap between rotor and stator [mm]: 0.25
• allowable Speed max. [rpm]: 30000
• Circumferential speed max. [m/s]: 11.8
• Immersion depth [mm]: 23 - 100
• Shaft length [mm]: 115
• Material in contact with medium: PTFE, AISI 316L
• pH range: 2 - 13
• Suitable for solvents: yes
• Suitable for abrasive substances: yes
• Working temperature max. [°C]: 180
• Sterilization methods: all methods
• Ultimate fineness, suspensions [µm]: 5 - 25
• Ultimate fineness, emulsions [µm]: 1 - 10
• Weight [kg]: 0.075
