EC7 HD3 Wireless Ultrasound Scanner, with 3-year Clarius membership

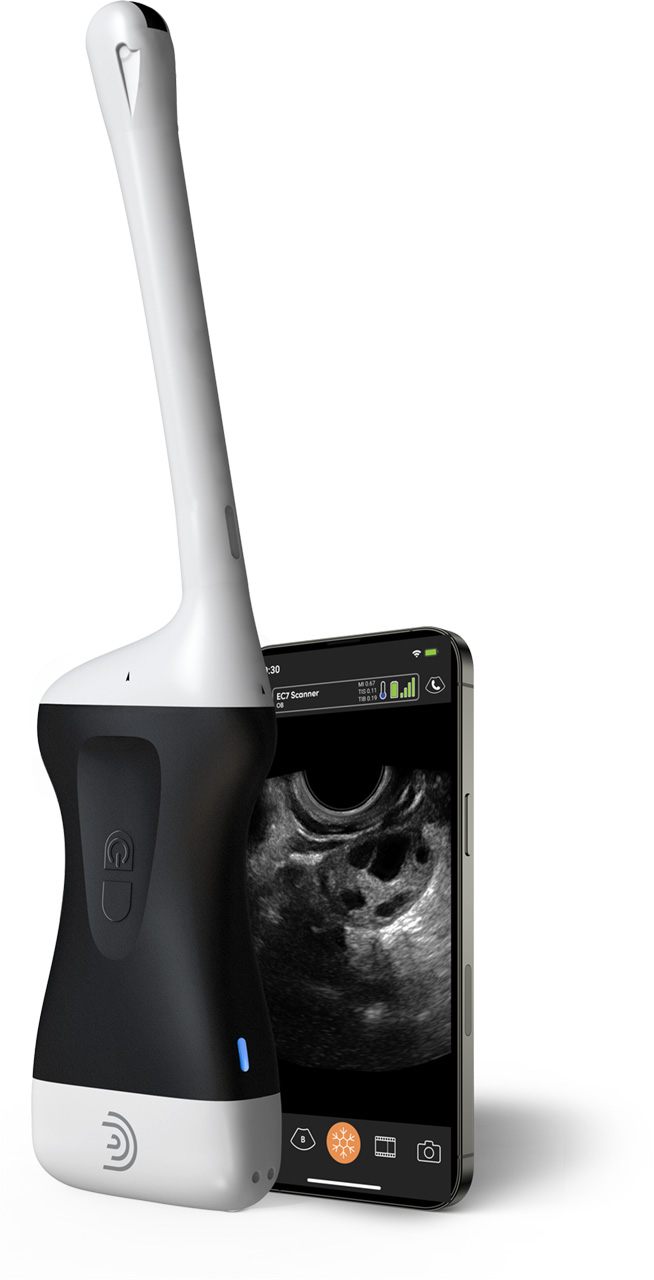

The Clarius EC7 HD3 is a wireless, high-resolution ultrasound scanner specially developed for gynecological and urological examinations. Thanks to its endocavity-shaped probe, it enables precise imaging of deep-seated anatomical structures up to a depth of 15 centimeters. The scanner operates in a frequency range of 3 to 10 MHz and delivers razor-sharp images at up to 30 frames per second thanks to 192 integrated piezo elements and eight beamformers. This makes the EC7 HD3 ideal for examining the uterus, ovaries, prostate and pelvis. Thanks to its lightweight magnesium housing, the device weighs just 326 grams including battery and fits comfortably in any lab coat pocket. Despite its compact design, it has a modern liquid cooling system and an integrated thermometer to prevent overheating during prolonged use. The IP67-certified waterproof housing allows complete disinfection - a decisive advantage for hygienic use in everyday clinical practice. The battery life is up to 60 minutes, making longer examinations possible without any problems. The device is also designed for telemedical use and enables wireless image transmission over a range of up to 40 meters.

Thanks to its approval for billing by selected associations of statutory health insurance physicians, the EC7 HD3 is particularly suitable for the private practice sector.

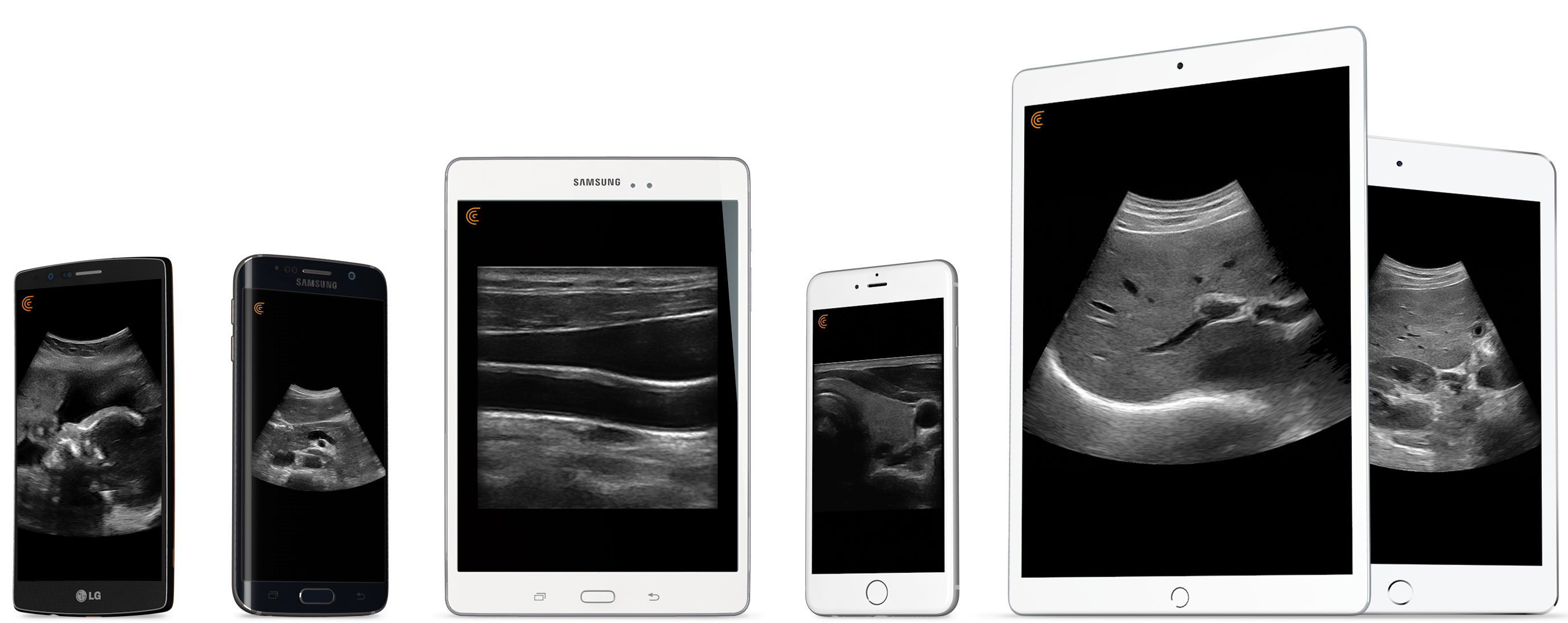

The ultrasound scanner is complemented by the intuitive Clarius app, which is available free of charge for both iOS and Android devices. The app connects the device in just a few seconds, transforming it into an intelligent diagnostic tool. In addition to classic imaging modes such as B-mode, M-mode, color Doppler and power Doppler, AI-supported functions are also available. With the help of auto-select technology, the system automatically recognizes the structures to be examined and optimizes imaging, focus zones and depth settings accordingly. Operation is convenient via the mobile device - zoom levels can be adjusted, measurements taken or different modes switched by tapping, swiping or pressing. The app also allows you to perform additional functions such as area and 3D calculations. One highlight is the Clarius Live function, which allows the examination to be shared with colleagues in real time - securely and browser-based via a link. The images can be stored directly on the mobile device, in the Clarius Cloud or on a DICOM-compliant server.

The purchase includes a three-year Clarius Membership, which includes cloud storage as well as access to premium features, AI updates and the complete DICOM setup.

Together, the EC7 HD3 ultrasound scanner and the Clarius app form a powerful, flexible system that combines modern sonography with mobile freedom and intuitive operation - ideal for precise, fast and safe patient care.

EC7 HD3 Wireless Ultrasound Scanner Product details:

• Endocavitary, wireless ultrasound scanner for gynecology and urology
• Frequency range: 3 - 10 MHz, image depth up to 15 cm
• 192 piezo elements & 8 beamformers for high-resolution image quality
• Up to 30 images per second
• Lightweight magnesium housing, only 326 g (incl. battery)
• Compact, ergonomic design - 30 % lighter than its predecessor
• Liquid cooling system & integrated thermometer to prevent overheating
• Battery life: up to 60 minutes
• IP67-certified - fully disinfectable & waterproof
• Wireless image transmission with a range of up to 40 m
• Approved for billing by some associations of statutory health insurance physicians
• Includes 3 years Clarius Membership

EC7 HD3 Wireless Ultrasound Scanner APP Details:

• Compatible with iOS & Android (free)
• Connection with scanner in under 10 seconds
• Intuitive operation via touch, swipe, tap
• Imaging modes: B-mode, M-mode, color Doppler, power Doppler
• AI-supported functions & auto-select technology
• Zoom, measurements, area & 3D calculations
• Clarius Live: real-time transmission for telemedical collaboration
• Storage on mobile device, Clarius Cloud or DICOM server
• Export formats: JPG, PNG, DICOM, BMP
• Includes DICOM setup via Clarius Membership
• Regular software updates & new functions included
