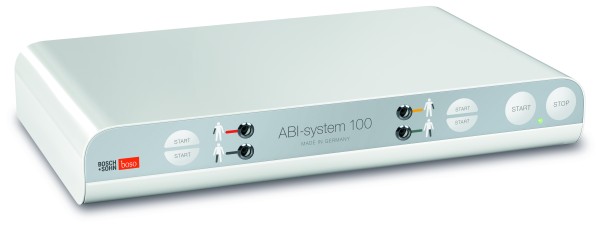

boso ABI-system 100 complete set

The boso ABI System 100 complete set offers a comprehensive solution for vascular diagnostics in medical facilities and practices. With its oscillometric measuring principle, it enables fast and precise measurement of blood pressure on all four extremities simultaneously. The measuring range extends from 60 to 240 mmHg for systole and from 40 to 140 mmHg for diastole. The cuff pressure range is between 0 and 300 mmHg. The device has a clear control panel for easy handling.

The ABI system includes automatic evaluation of the measured values using the software supplied. In addition, four color-coded cuffs are supplied for arm and leg measurements, with the arm cuffs suitable for upper arm circumferences of 22-42 cm and the ankle cuff for circumferences of 18-38 cm. It complies with device protection class II, type BF, for maximum safety during use.

The boso profil-manager XD software offers a powerful solution for managing and analyzing patient data. With functions such as 24-hour blood pressure measurement, atherosclerosis PAD initial diagnosis and the option to transfer data from patient devices for home users, it offers comprehensive diagnostic support. The GDT interface enables simple integration into standard practice systems.

The complete set includes the measuring device, two nylon arm cuffs (arm circumference 22-42 cm) including tubing, two nylon leg cuffs (leg circumference 18-38 cm) including tubing, a power supply unit, a USB connection cable and a CD with the profilmanager XD software. With a manufacturer's warranty of two years, the boso ABI-system 100 complete set offers reliability and safety for vascular diagnostics in medical practice.

boso ABI-system 100 complete set Product details:

• Oscillometric measuring principle for precise blood pressure measurements on the extremities
• Clearly arranged control panel for easy handling
• Automatic evaluation using the software supplied
• XD software profile manager enables comprehensive management and analysis
• Color-coded cuffs

boso ABI-system 100 complete set technical details:

• Measurement technology: oscillometric
• Measuring ranges: systolic: 60 - 240 mmHg / diastolic: 40 - 140 mmHg
• USB connection
• Weight: 3.8 kg
• Dimensions: 46 x 8.3 x 29 cm

boso ABI-system 100 complete set Scope of delivery:

• 1 measuring device
• 2 nylon arm cuffs (arm circumference 22 - 42 cm), incl. tube
• 2 nylon leg cuffs (leg circumference 18 - 38 cm), incl. tube
• 1 power supply unit
• 1 USB connection cable
