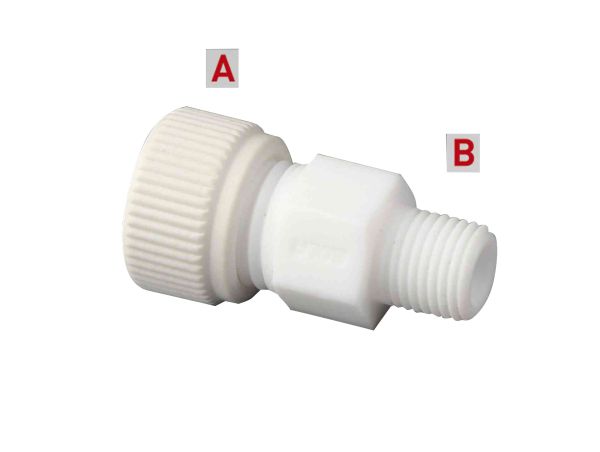

Straight tube fitting made of PTFE with nuts made of glass-fibre reinforced PTFE and a screw-in... more
Straight tube fitting made of PTFE with nuts made of glass-fibre reinforced PTFE and a screw-in thread (either NPT or G). Universal chemical resistance, the product is only exposed to PTFE.
Item no. | Fitting thread | for outside diameter | Bore | Screw-in thread | Total length |
271738001 | M 14 x 2 | 4 mm | 4 mm | NPT 1/8 Zoll | 38 mm |
101761804 | M 14 x 2 | 4 mm | 4 mm | G 1/8 Zoll | 38 mm |
271738005 | M 14 x 2 | 4 mm | 4 mm | NPT 1/4 Zoll | 40 mm |
101761812 | M 14 x 2 | 6 mm | 4 mm | NPT 1/4 Zoll | 40 mm |
101761814 | M 14 x 2 | 6 mm | 4 mm | G 1/4 Zoll | 38 mm |
271738006 | M 14 x 2 | 6 mm | 4 mm | NPT 3/8 Zoll | 46 mm |
101761824 | M 18 x 2 | 8 mm | 8 mm | NPT 1/4 Zoll | 46 mm |
271738007 | M 18 x 2 | 8 mm | 8 mm | NPT 3/8 Zoll | 46 mm |
101761836 | M 18 x 2 | 10 mm | 8 mm | NPT 1/4 Zoll | 46 mm |
271738008 | M 18 x 2 | 10 mm | 8 mm | NPT 3/8 Zoll | 46 mm |
271738009 | M 28 x 2 | 12 mm | 12 mm | NPT 3/8 Zoll | 56 mm |
271738010 | M 28 x 2 | 12 mm | 12 mm | NPT 1/2 Zoll | 56 mm |
271738011 | M 28 x 2 | 14 mm | 12 mm | NPT 1/2 Zoll | 56 mm |
271738012 | M 28 x 2 | 16 mm | 12 mm | NPT 1/2 Zoll | 56 mm |
Material: | PTFE |
