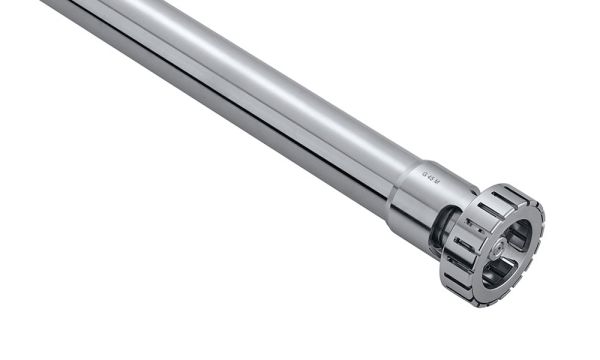

Dispersing tool for T 50 digital, S 50 KG - HH - G 45 M

Dispersing tool for T 50 digital drive. Ball-bearing shaft, single mechanical seal made of carbide/carbide. Working under vacuum possible. Resistant to solvents. Sterilisable, short-term working temperature up to 180°C.

• Immersion depth: 70 - 260 mm
• Stator diameter: 45 mm
• Working range: 0.5 - 15 liter

Technical data:

• Volume range (H2O) [l]: 0.5 - 15
• Stator diameter [mm]: 45
• Rotor diameter [mm]: 40.5
• Circumferential speed max. [m/s]: 21.2
• Immersion depth [mm]: 70 - 250
• Shaft length [mm]: 300
• Material in contact with medium: FFPM / WC /AISI 316L
• pH range: 2 - 13
• Suitable for solvents: yes
• Suitable for abrasive substances: no
• Working temperature max. [°C]: 150
• Sterilization methods: wet chemical
• Vacuum [mbar]: 1
• Pressure max. [bar]: 6
• Ultimate fineness, suspensions [µm]: 25 - 50
• Ultimate fineness, emulsions [µm]: 5 - 20
• Weight [kg]: 0.52
