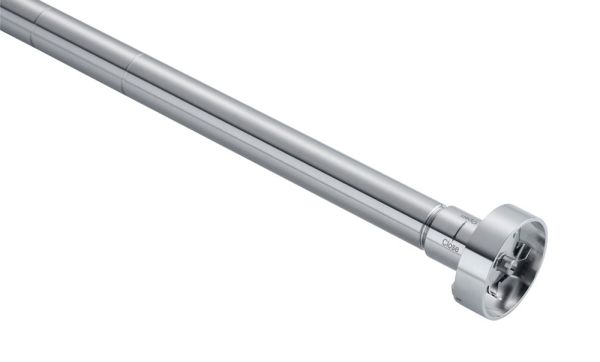

Dissolver agitator shaft S 25 KV - 2802, stainless steel, high speed

High speed agitator shaft suitable for intensive mixing and for dissipation of agglomerates.
Bearing assembly with ball bearing and mechanical seal (SiC = counter ring and slide ring, o-rings = Kalrez)

• Material: Stainless steel (AISI 316L)
• For operation under vacuum
• Short-term operating temperature: up to 220°C
• Suitable for vacuum and solvents, can be sterilized

Technical data:

• Volume range (H2O) [l]: 0.1 - 2
• Stator diameter [mm]: 39
• Rotor diameter [mm]: 30
• allowable Speed max. [rpm]: 25000
• Circumferential speed max. [m/s]: 39.3
• Immersion depth [mm]: 40 - 225
• Shaft length [mm]: 270
• Material in contact with medium: FFPM / SIC, AISI 316L, AISI 302
• pH range: 2 - 13
• Suitable for solvents: yes
• Suitable for abrasive substances: no
• Working temperature max. [°C]: 220
• Sterilization methods: all methods
• Vacuum [mbar]: 1
• Pressure max. [bar]: 6
• Dry Operation: no
• FDA conformity: yes
• Weight [kg]: 0.56
