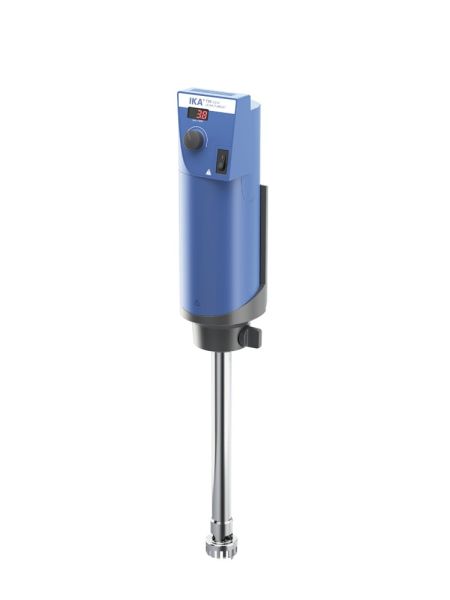

ULTRA-TURRAX® Disperser T 50 digital

Powerful dispersing instrument for volumes from 0.25 - 30 l (H2O) with digital speed display. It offers a wide speed range from 600 – 10,000 rpm that enables users to work at high circumferential speeds even with small rotor diameters. A broad choice of dispersing elements guarantees a wide range of applications. Reproducible operations due to constant speed even with changes in viscosities.

• Digital speed display
• Electronic speed control
• Electronic overload protection
• Stainless steel dispersing elements can be cleaned quickly and easily
• Smooth start
• Error code display

The dispersing tool is not included in the scope of delivery.

• Technical data:
• Motor rating input [W]: 1100
• Motor rating output [W]: 700
• Volume range (H2O) [l]: 0.25 - 30
• Viscosity max. [mPas]: 5000
• Speed range [rpm]: 600 - 10000
• Speed deviation [%]: 1
• Speed adjustment: stepless
• Speed display: LED
• Noise without element [dB(A)]: 72
• Extension arm diameter [mm]: 16
• Extension arm length [mm]: 220
• Process type: batch
• Timer: no
• Permissible ON time [%]: 100
• Dimensions (W x H x D) [mm]: 115 x 355 x 139
• Weight [kg]: 5.85
• Permissible ambient temperature [°C]: 5 - 40
• Permissible relative humidity: 80% (up to 31°C), decreasing linearly to max. 50 (@40°C)
• Protection class according to DIN EN 60529: IP 20
• RS 232 interface: no
• USB interface: no
• Analog output: no
• Voltage [V]: 220 - 240
• Frequency [Hz]: 50/60
• Power input [W]: 1100
